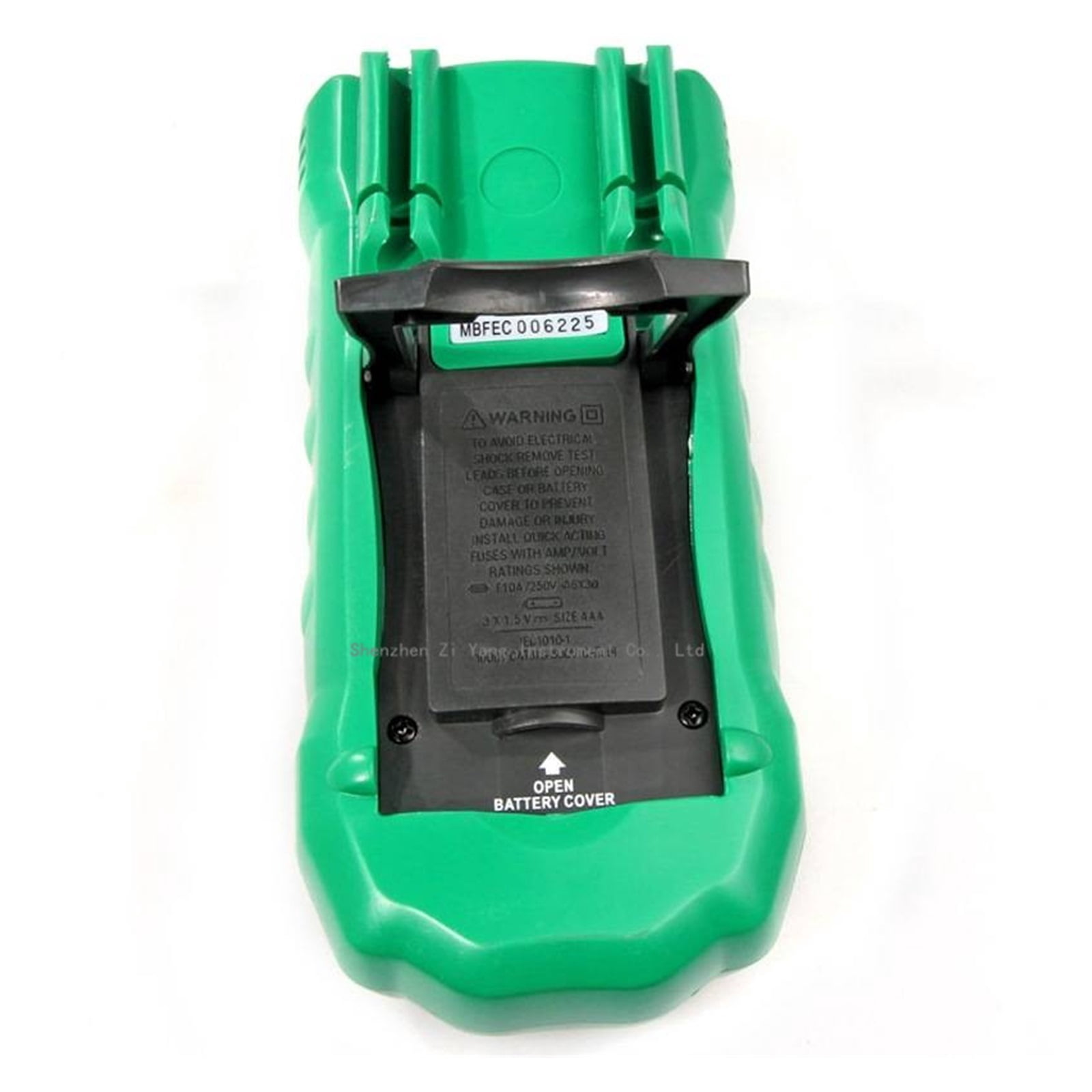

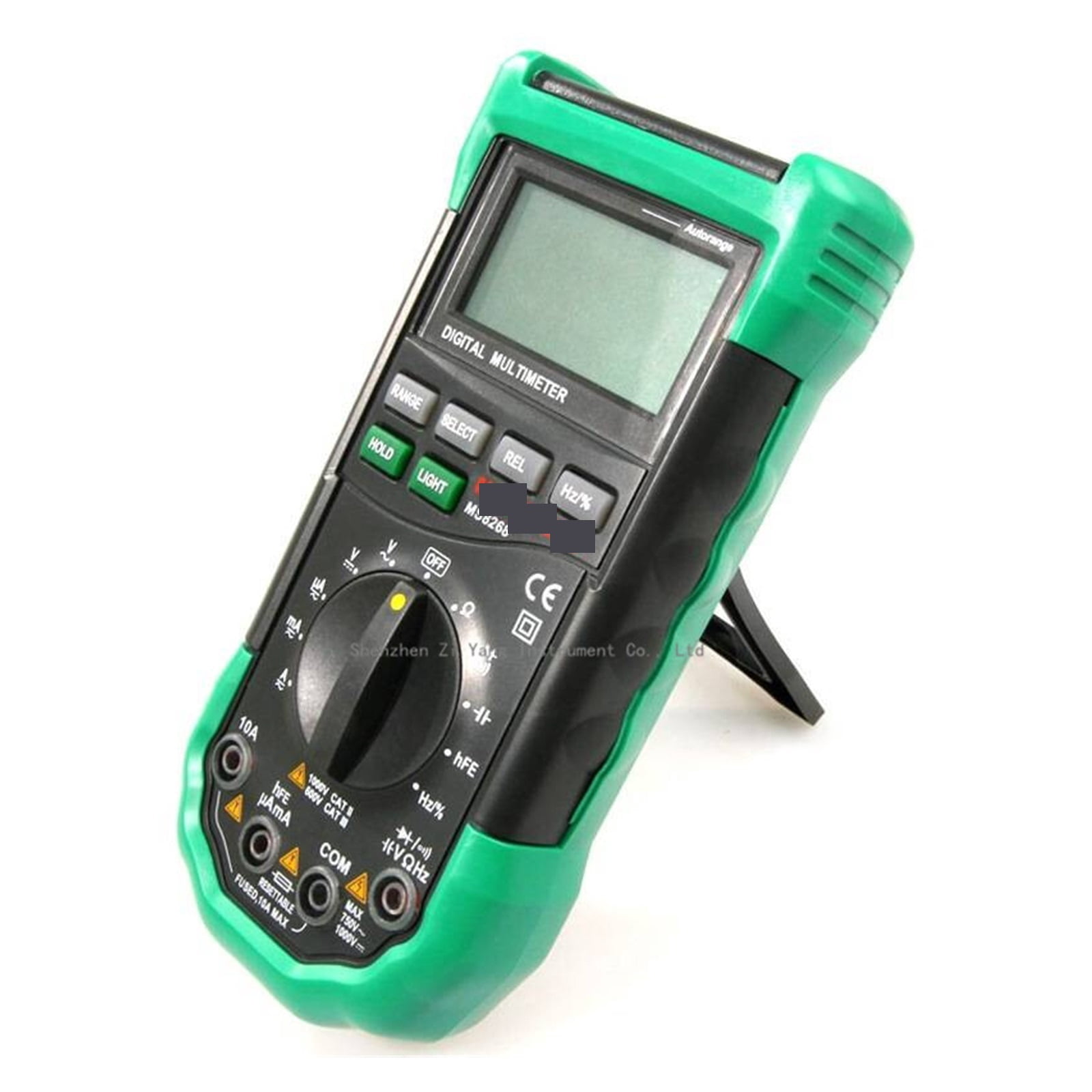

MS8268 Auto Range Digital Multimeter Full Protection Ac/dc Ammeter Voltmeter Ohm Frequency Electrical Tester Diode Test
Product details
| Management number | 237857682 | Release Date | 2026/07/11 | List Price | US$41.27 | Model Number | 237857682 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Electrical Tester Diode, Multimeters, Electrical Instruments, Measurement & Analysis Instruments</p><p></p><p>Features</p><p>Data hold</p><p>Backlight</p><p>Builtresettable fuse protection</p><p>Fuse Protection mA and mA file resettable fuse; </p><p>10A file: F 10A/250V 6.332mm</p><p>Red lights to show the correct terminals</p><p>Audible warning for over-range</p><p>Unit symbol display</p><p>Continuity test</p><p>Diode test</p><p>Duty Cycle Measurement</p><p>Relative value measurement</p><p></p><p>Specifications</p><p>DC voltage 400m4V40V400V 0.7%, 1000V ± 0.8%</p><p>AC voltage: 400mV ± 3.0%, 4V/40V/400V ± 0.8%, 750V ± 1.0%</p><p>Resistance: 400/4k/40k/400k/4M ± 1.0%, 40M ± 2.0%</p><p>DC current: 400A/4000A/40mA/400mA ± 1.5%,10A ± 2.0%</p><p>AC current: 400A/4000A/40mA/400mA ± 1.5%,10A ± 3.0%</p><p>Capacitance: 20n/200n/2/20F ± 4.0%</p><p>Frequency: 10/100/1000/10k/200kHz ± 2.0%</p><p>Transistor hFE: 1 ~ 1000</p><p>Continuity test</p><p>Diode test</p><p>Duty Cycle Measurement</p><p>Relative value measurement</p><p>Sampling Rate: approx. 3 times / second</p><p>Test Leads: 1KV 10A</p><p>Safety Standards: IEC1010-1, CAT. III 600V & CAT II 1000V</p><p>Operating Temperature 0 40 C 32 104 F</p><p>Operating Humidity below 80% RH, <10° C non-condensing</p><p>Storage Temperature: -10 ~ 60° C (14~ 140° F)</p><p>Storage Humidity: below 80% RH</p><p>Power: 3 x 1.5V AAA batteries (Not included)</p><p>Dimensions: 195 mm x 92 mm x 55mm (7.68' X 3.62' X 2.17' inch)</p><p>Weight: Approx.380g (13.40oz)</p><p>Note: do not include the battery</p>
- Display 3 34 digital large LCD with 4000 counts
- Manual Auto ranges
- Full overload protection
- Misconnection alarm system
- "Sleep mode", auto power off & low battery indication
| Multimeter type | Digital |
|---|---|
| Features | Auto Lock, Low Battery Indicator |
| Volts | 400 mV, 4 V, 40 V, 400 V, 750 V, 1000 V |
| Brand | LilyStore |
| Display | LCD |
| Power type | Battery |
| Model | MS8268 |
| Screen size | 3.34" |
| Weight | 17.65 oz |
| Has written warranty | No |
