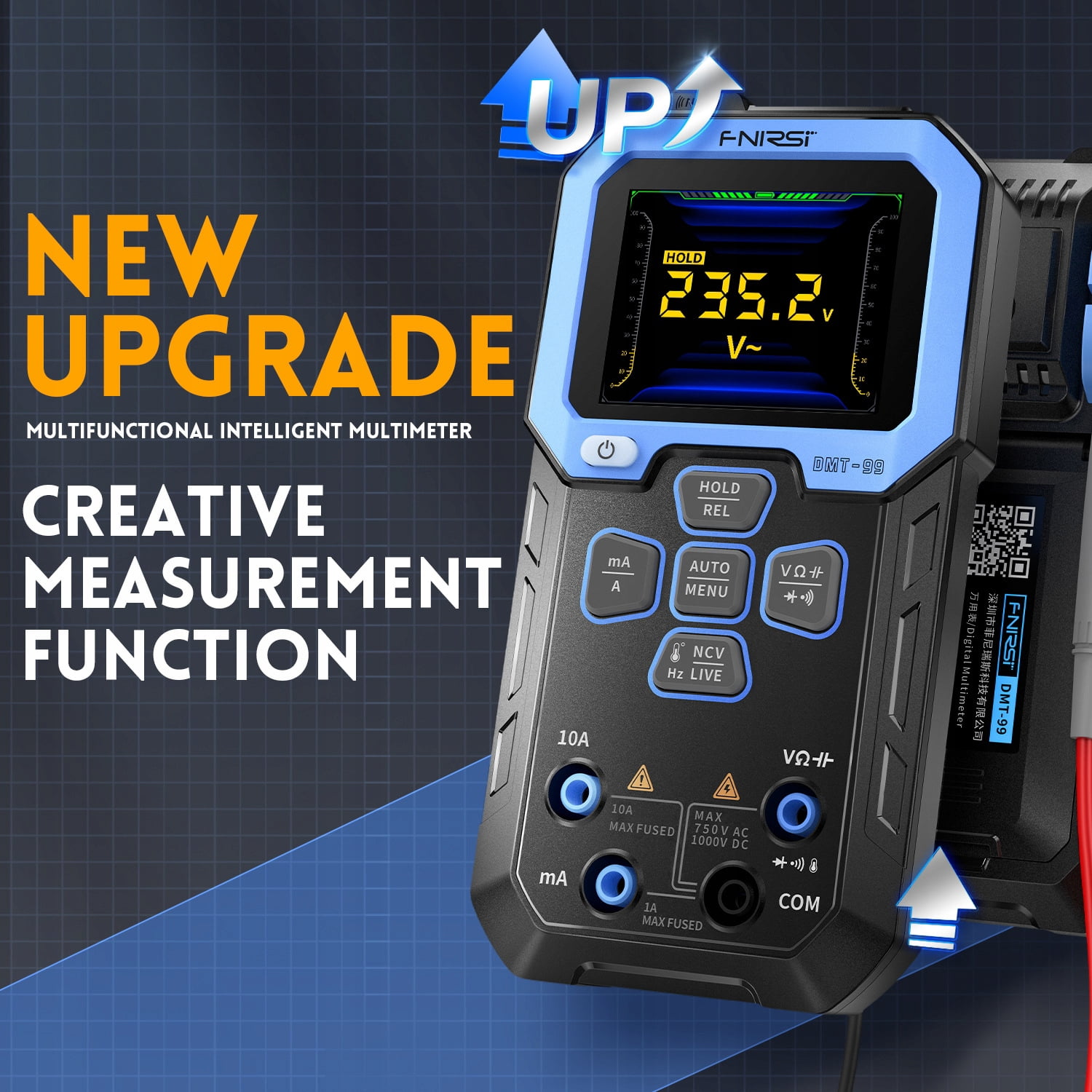

DMT-99 multimeter digital high-precision intelligent anti-burning multi-function automatic digital display electrician

DMT-99 multimeter digital high-precision intelligent anti-burning multi-function automatic digital display electrician

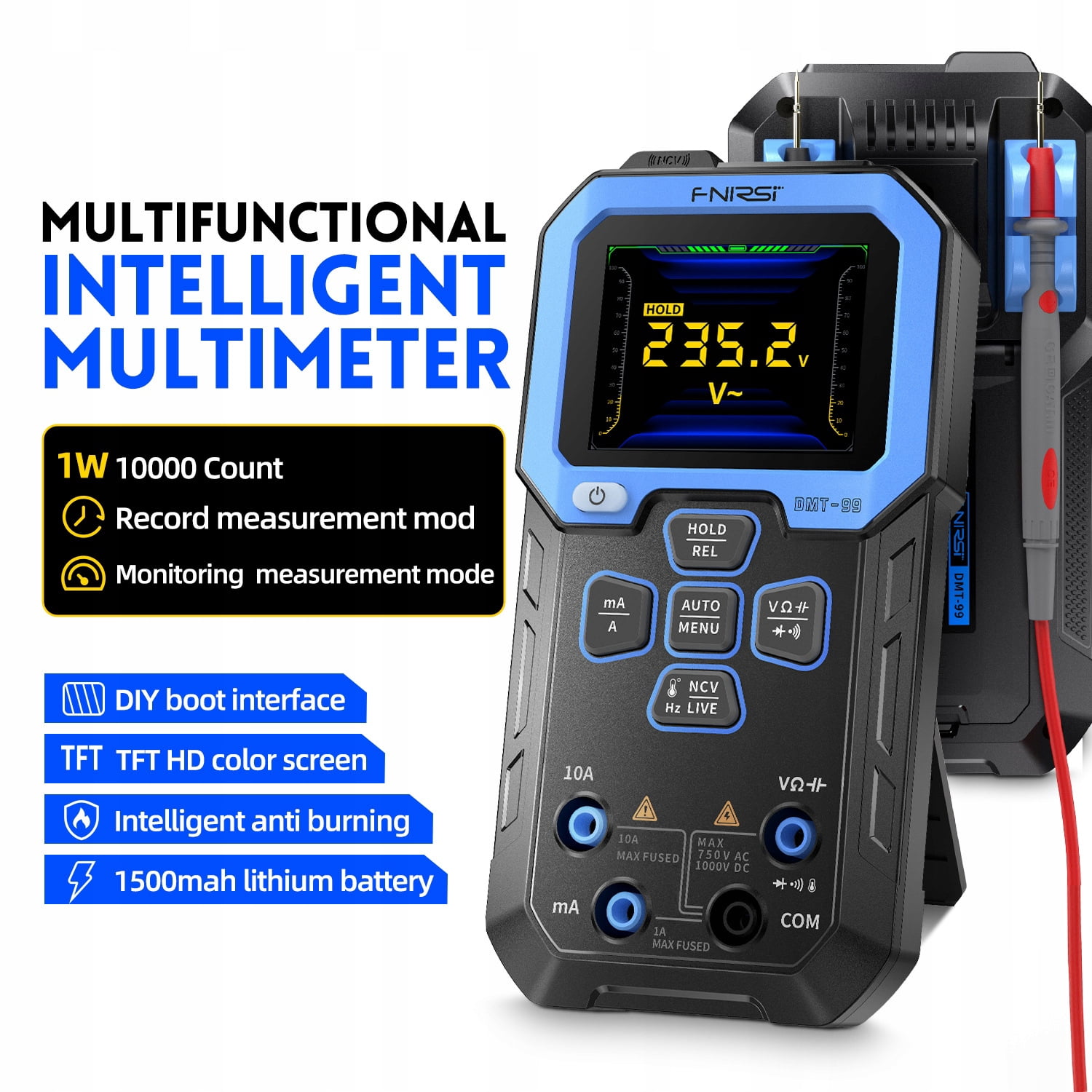

• A multimeter is a universal diagnostic device and an essential tool for any electrician, electronics or DIY enthusiast. A good example is the Fnirsi DMT-99, a smart multimeter designed to simplify the measurement process while maintaining the accuracy of the measurement results. It is equipped with a large color screen with a diagonal length of 2.4 inches and a wide viewing angle. The parameters displayed on the screen can be read from a distance in almost all lighting conditions.

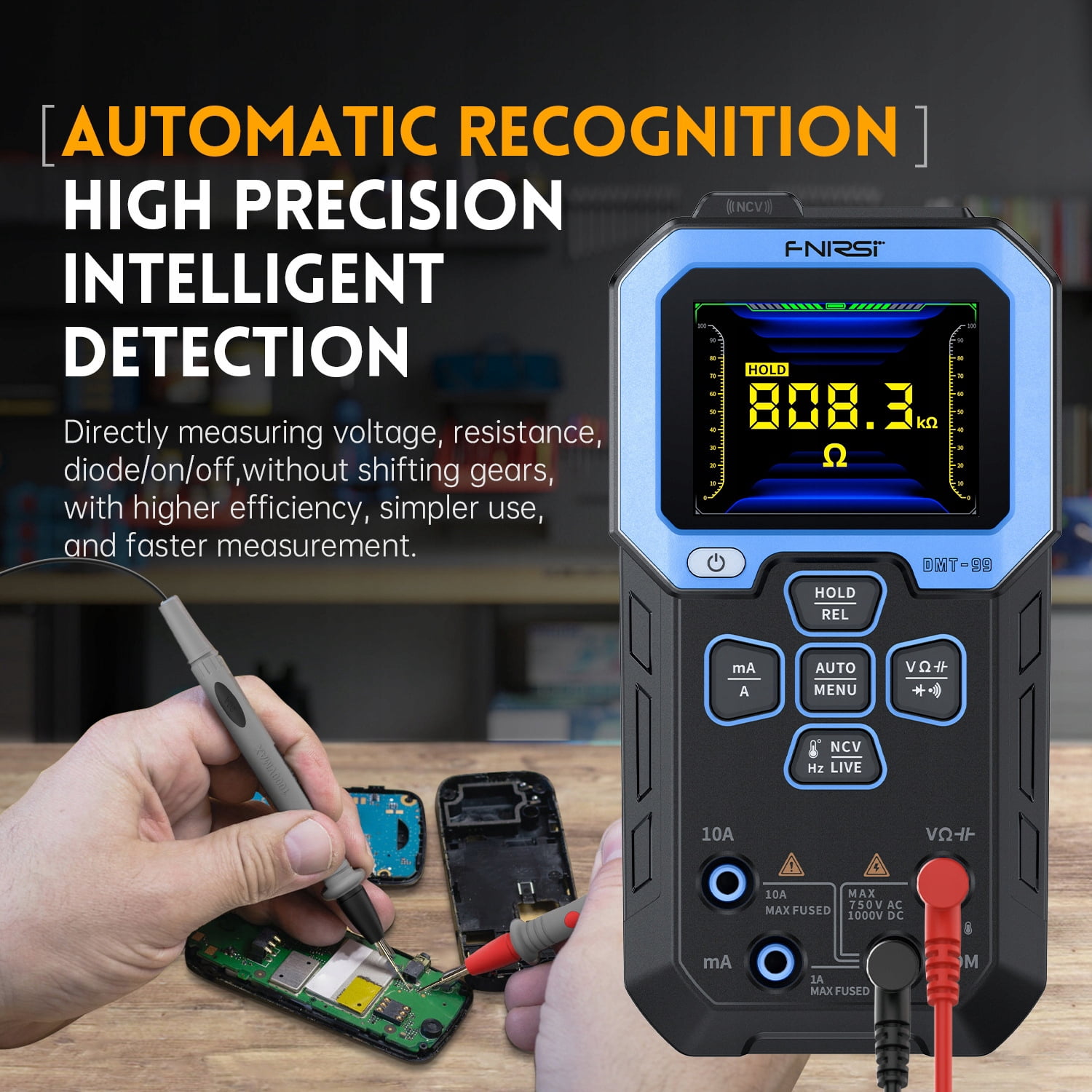

  The device housing is made of ABS, a durable plastic that is resistant to impacts and scratches. The smart electronics used in the Fnirsi DMT-99 can select the measurement mode and range on their own, allowing you to say goodbye to the hassle of rearranging the device like a traditional multimeter.

• With Fnirsi DMT-99, you can measure all standard parameters, such as current and voltage (AC and DC), current, resistance, capacitor capacity, frequency, and temperature. This multimeter can also achieve non-contact detection of live lines, true RMS measurement, and testing of diode and circuit continuity.

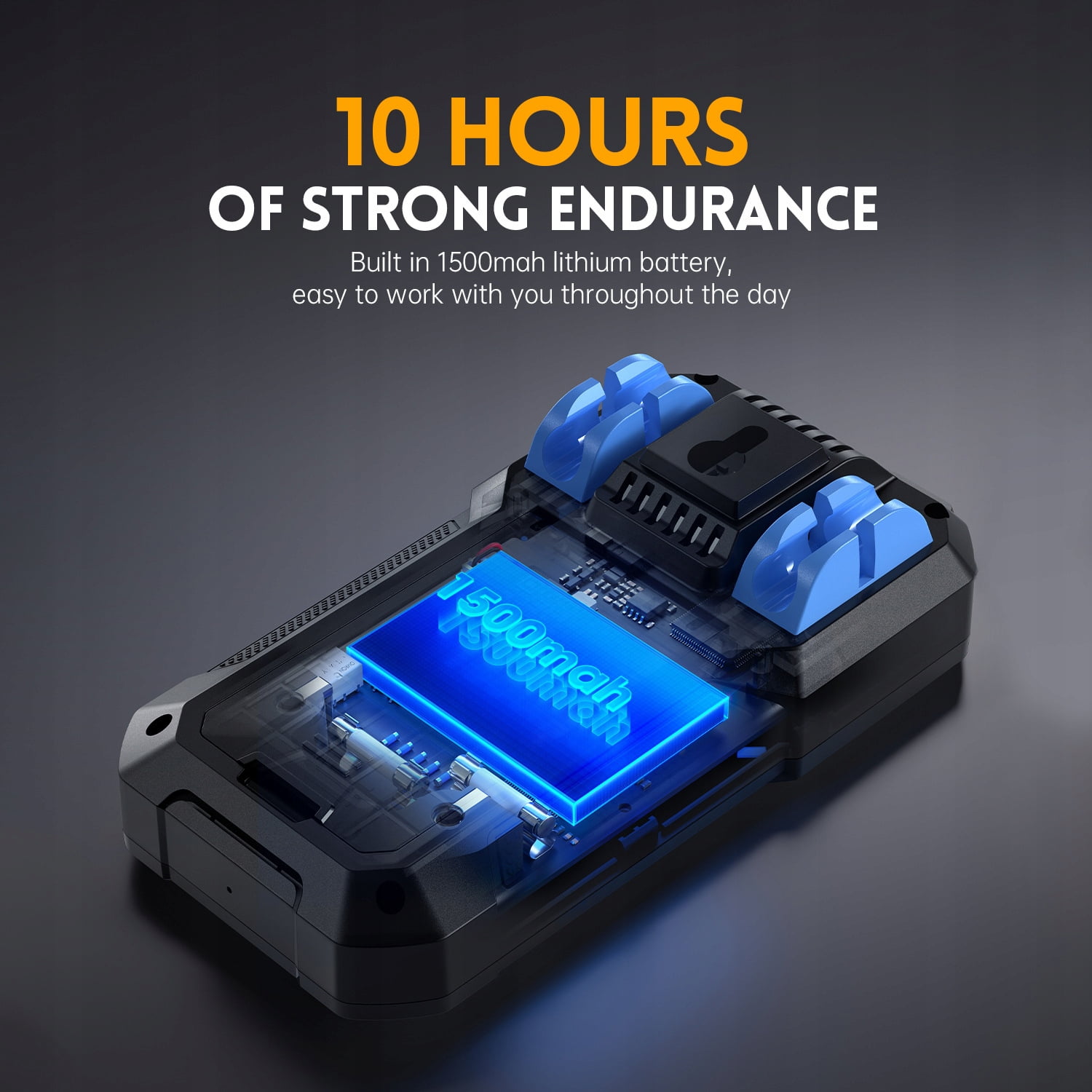

• The Fnirsi DMT-99 is powered by a built-in lithium battery with a capacity of 1500 mAh. It can provide up to 10 hours of continuous operation and can be quickly charged through an integrated USB-C connector. For those who frequently use a multimeter and dislike purchasing expensive 9V or AAA batteries, this is good news.

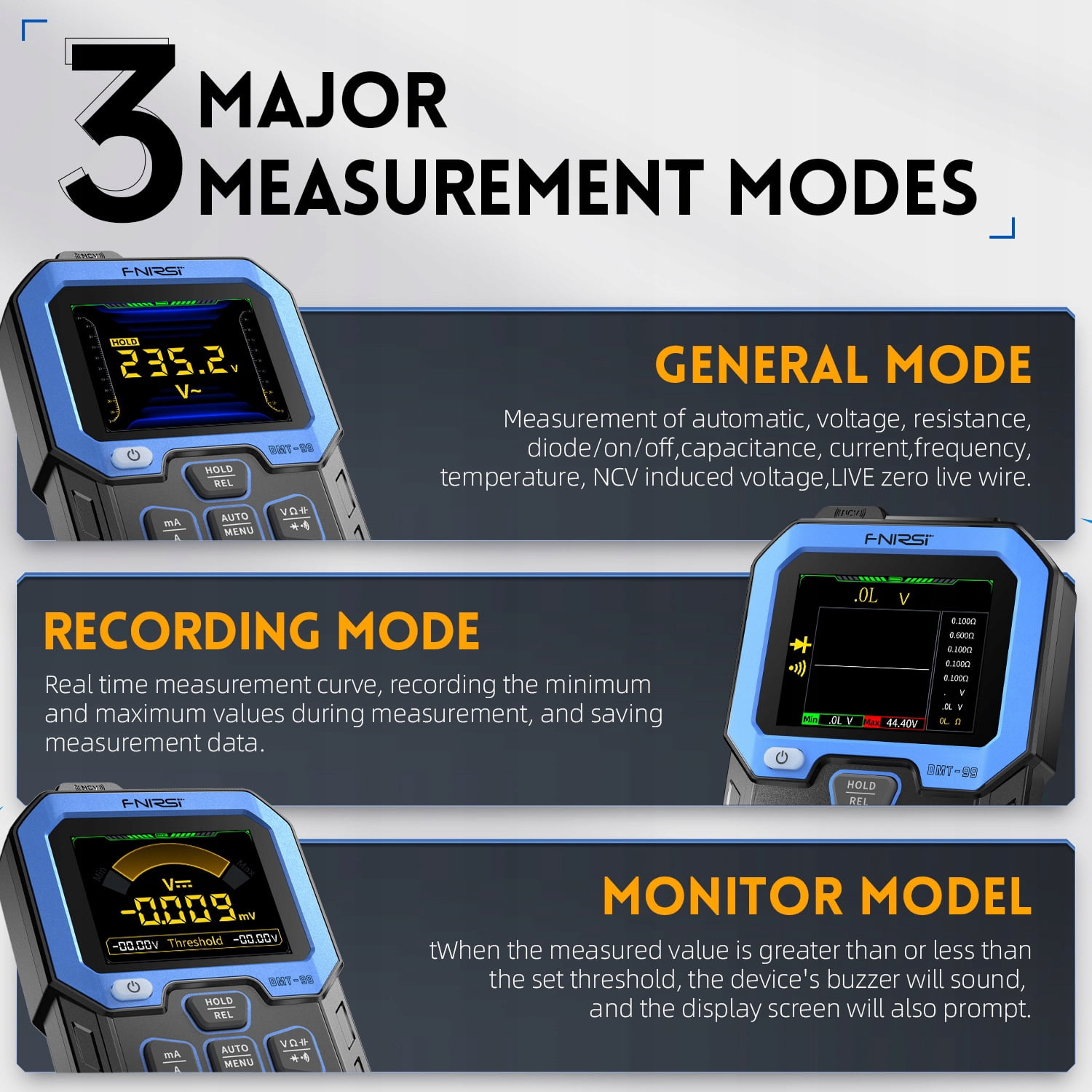

• The ability to record the results obtained is also commendable. In this mode, Fnirsi DMT-99 stores the minimum and maximum values in its memory, while displaying the measured histogram. The multimeter is also equipped with a HOLD function, which can display the maximum value measured last time.

• Specifications:

  2.4-inch TFT LCD color display screen, can be read in both sunlight and dark rooms;

  Automatically select measurement range and type;

  AC voltage range: 9999 to 750,0 V/accuracy ± (0,5%+3 to 1,5%+3);

  DC voltage range: 9999 to 999,9 V/accuracy ± (0,5%+3 to 1,2%+3);

  Test AC/DC strength range from 9999 µ A to 9999 A/accuracy ± (1.2%+3 to 1.5%+3);

  Resistance range: 9999 m Ω -9999 Ω/accuracy ± (from 0,5%+2 to 1,5%+3);

  Capacitor capacitance range: from 999,9 nF to 999,9 μ F/accuracy ± (2%+5 to 5%+20);

  Frequency range: 9999 Hz to 9999 MHz/accuracy ± (0,1%+2);

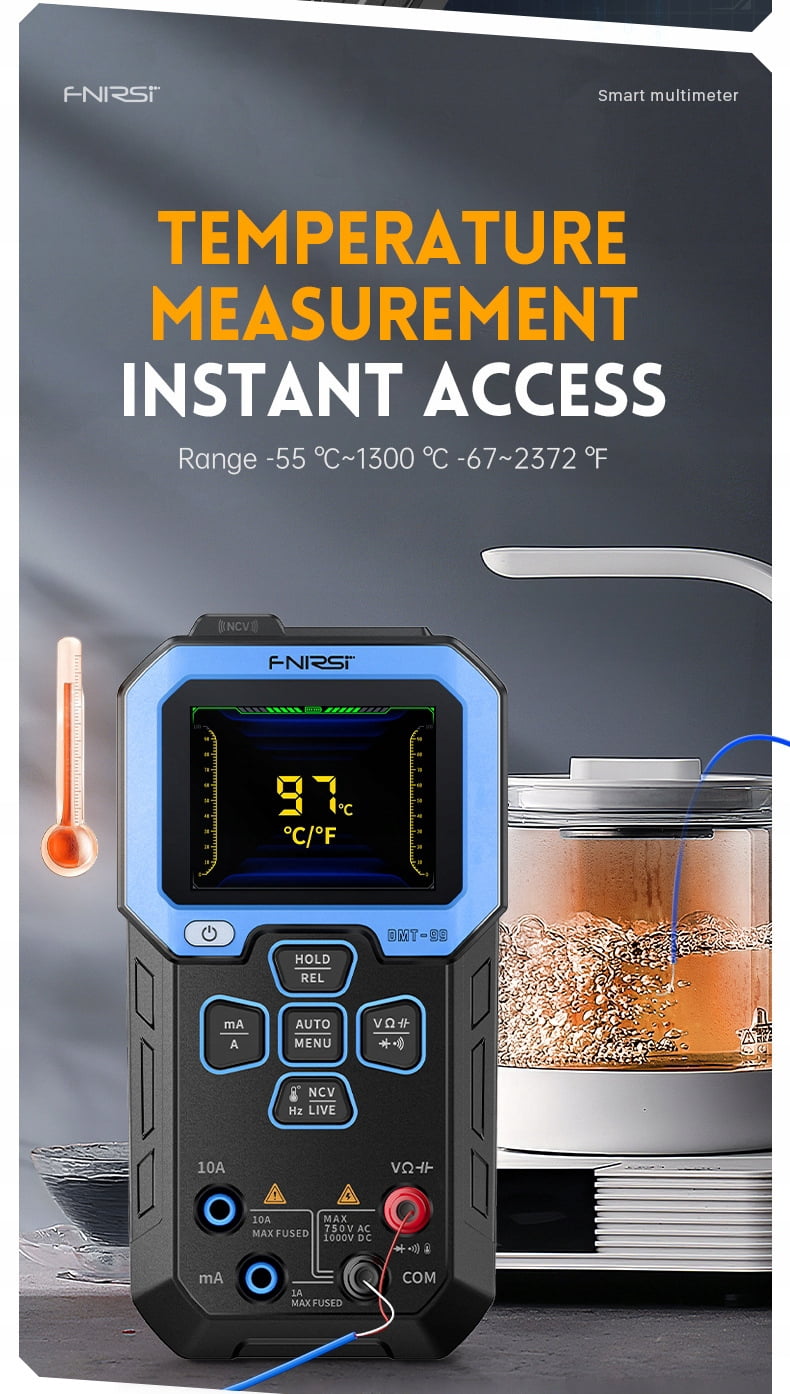

  Temperature range: -55 to 1300 ° C/accuracy ± (2.5%+5);

  The possibility of testing diodes;

  Capable of testing circuit continuity;

  True effective value measurement;

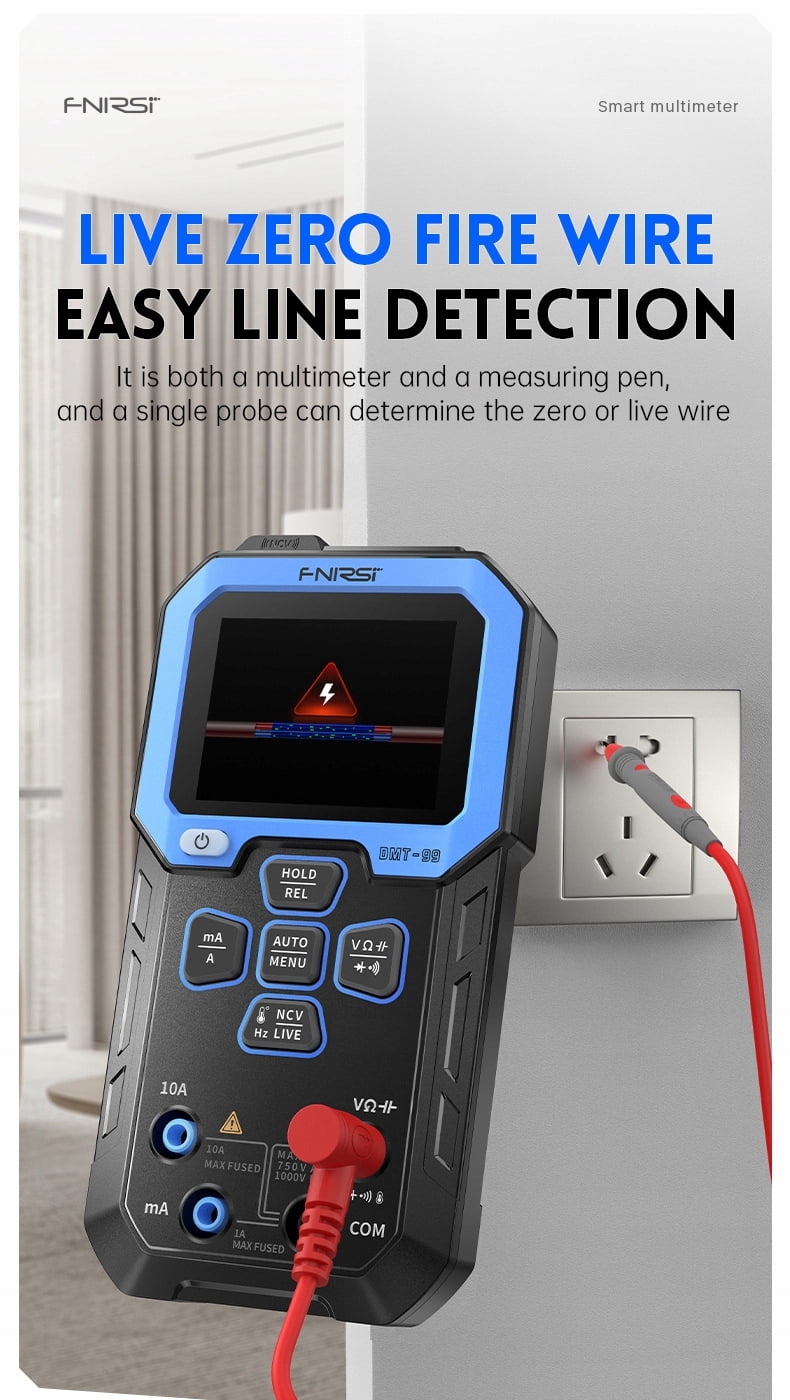

  NCV function, used for non-contact voltage detection;

  Live streaming function;

  HOLD function;

  Double ceramic fuse;

  USB interface is used to charge the multimeter;

  Built in lithium battery with a capacity of 1500 mAh, providing up to 10 hours of operation time;

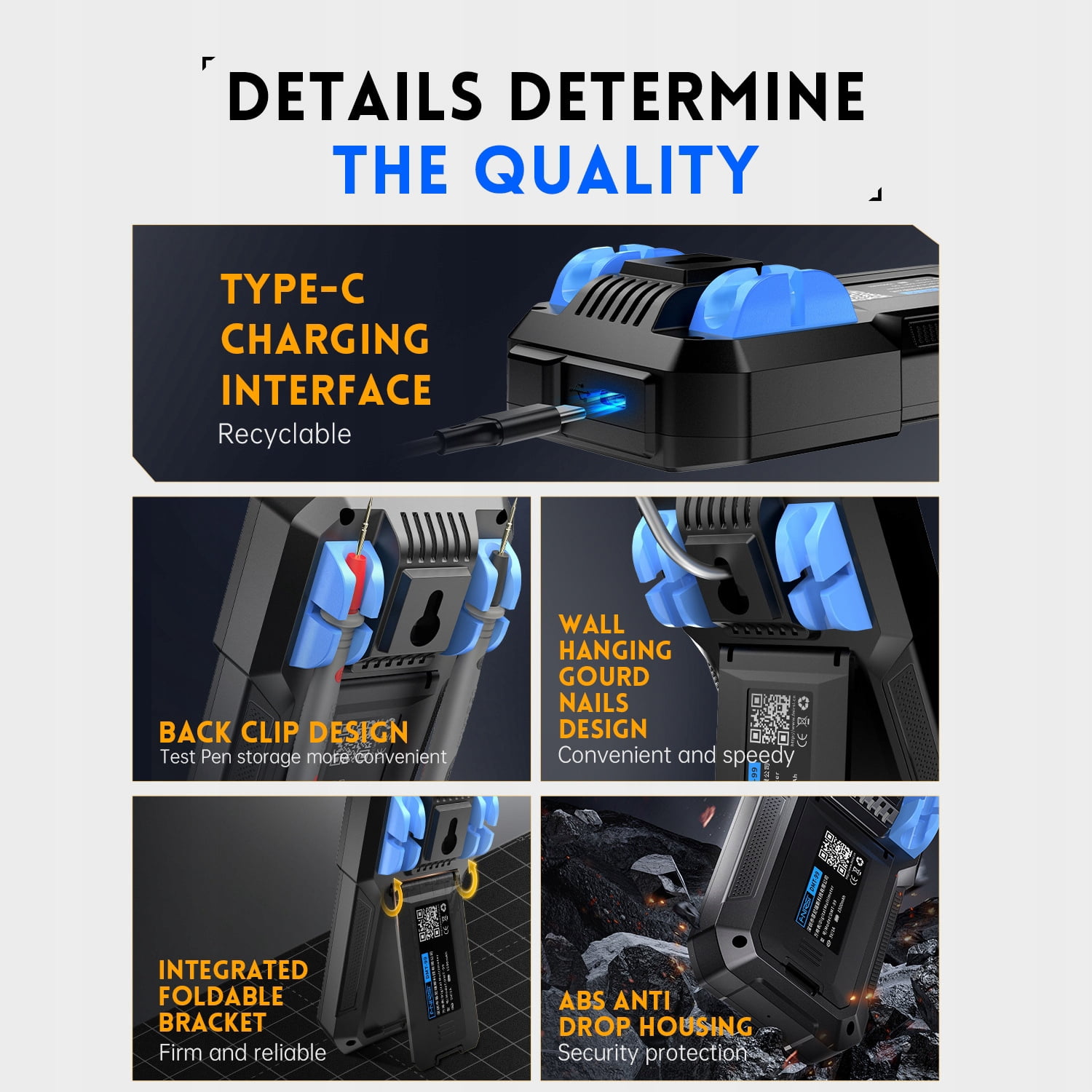

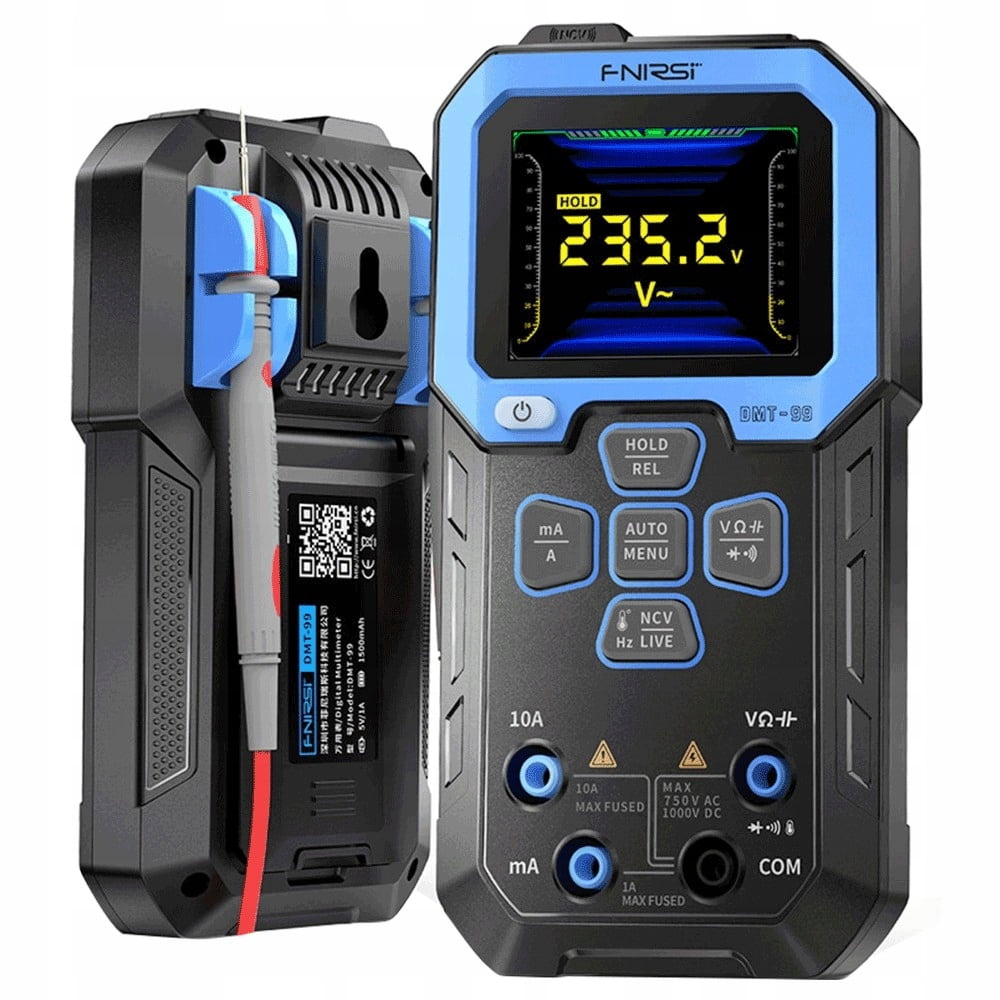

  Detachable legs ensure stable positioning of the equipment on the working surface;

  Can be hung on a hook;

  Integrated bracket for measuring probes;

  Dimensions: 167mm x 89mm x 35mm;

• DMT-99 Intelligent Digital Multimeter * 1

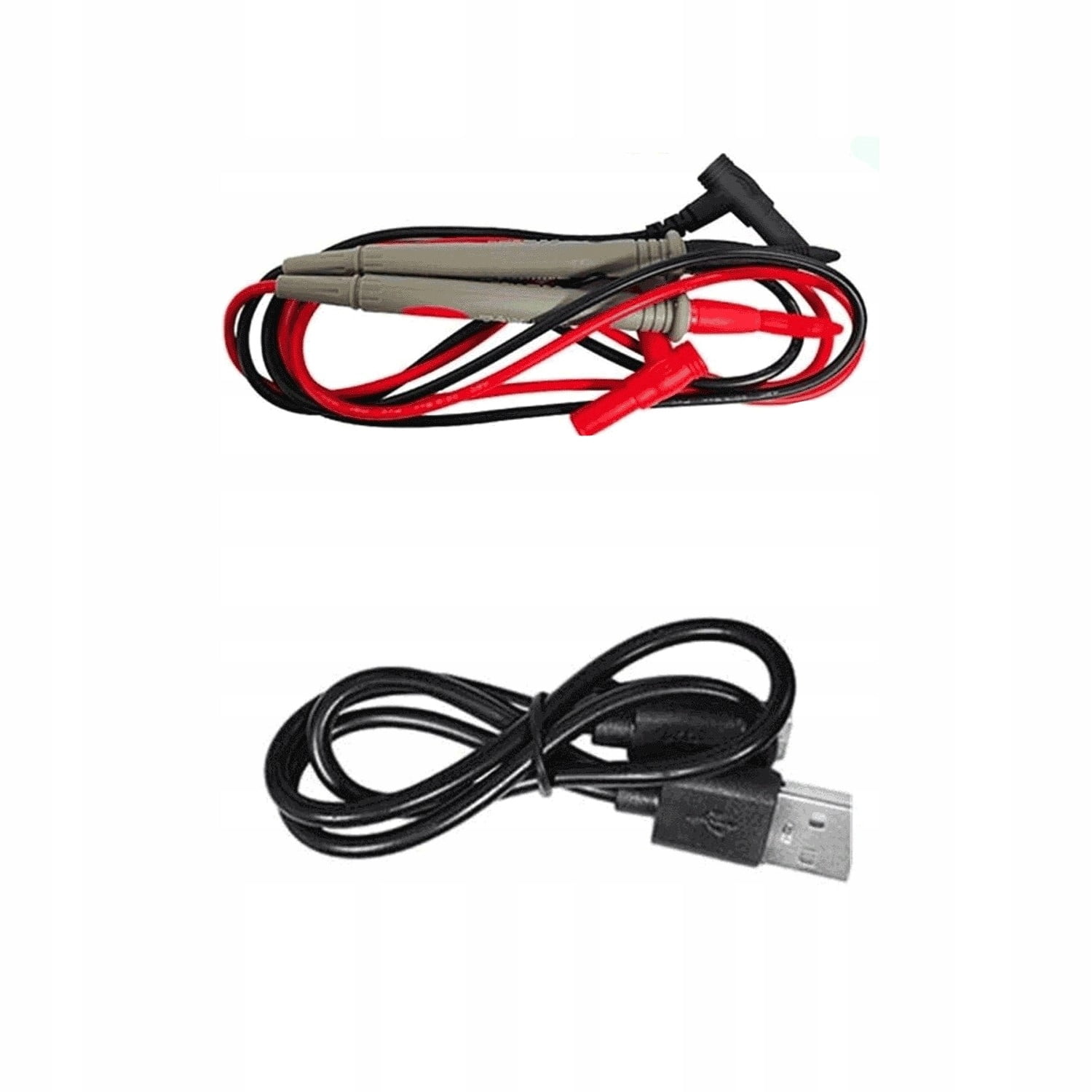

  USB Type-C cable * 1

  Probe * 1

  English instruction manual * 1
