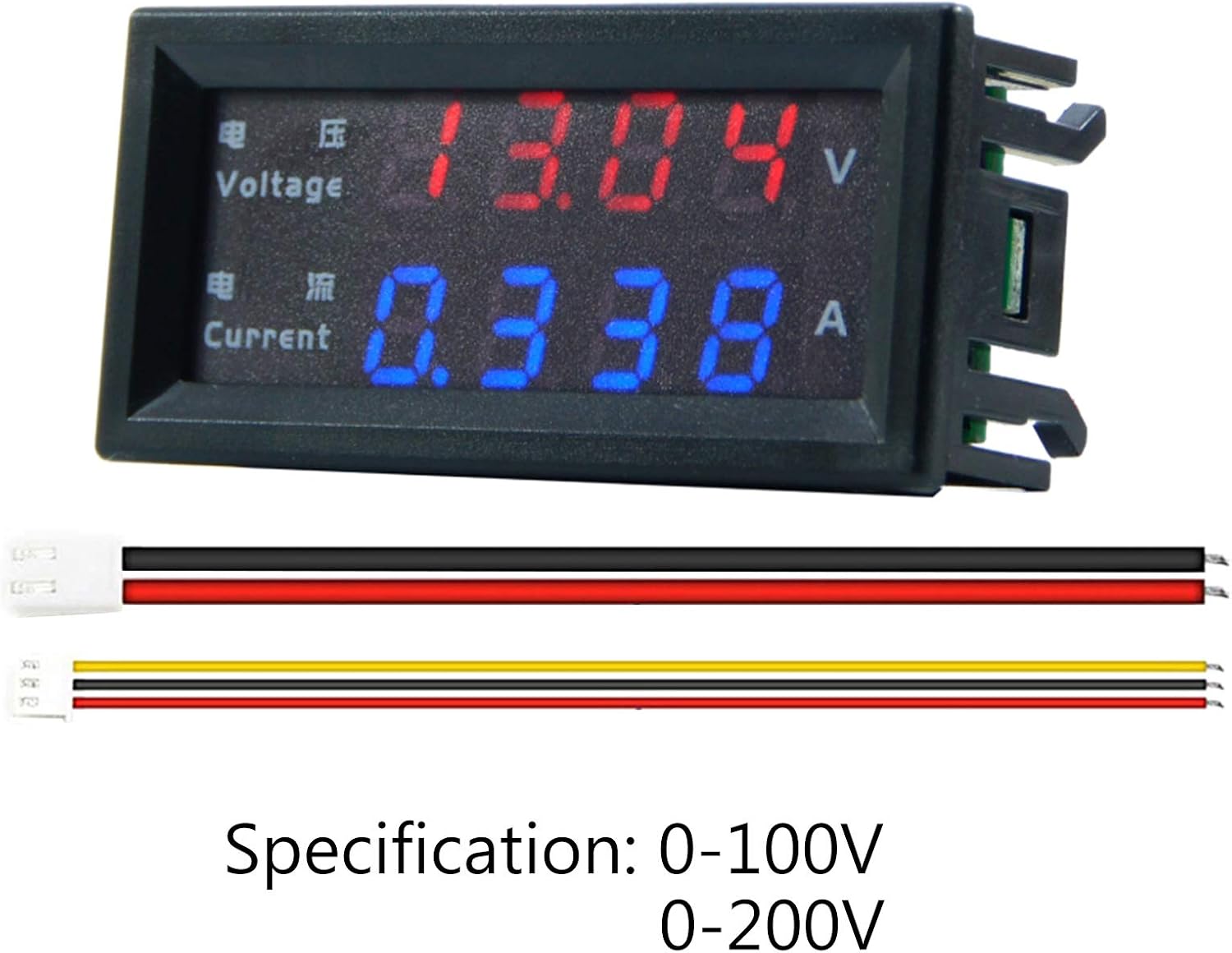

Dc 100V 200V 10A Voltmeter Ammeter, 4 Digits Dual Led Digital Display, High Precision Amps Volts Merter Panel Gauge

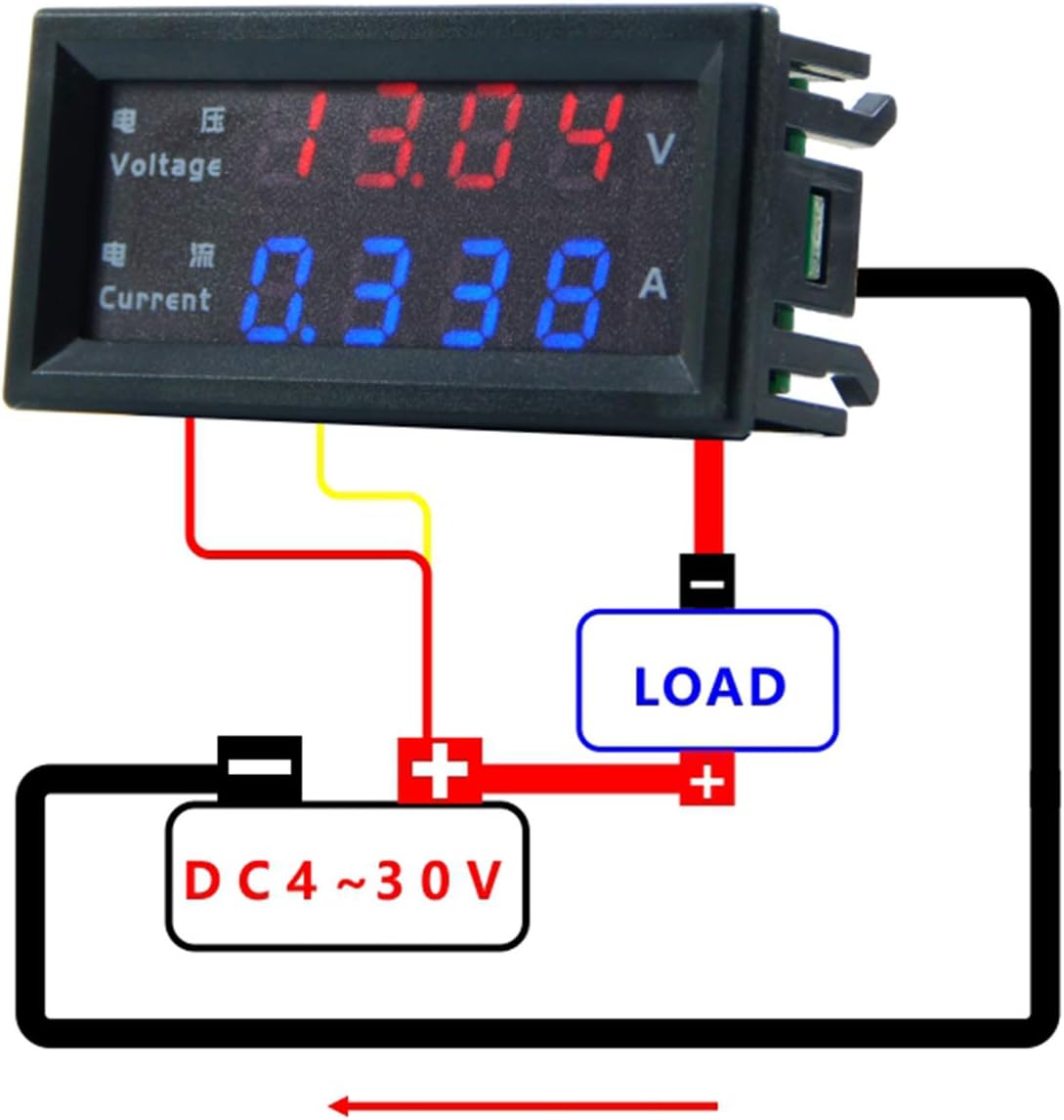

Features:1. The minimum mA and mV levels can be displayed (200V range cannot display mV levels)2. Lens silk screen, Chinese and English, international common unit symbols, clear at a glance,3. The on-board simulator can be automatically reset to zero (30153 series current cannot be automatically reset to zero, occasionally the customer needs to manually reset to zero if it does not return to zero)Specifications:Working voltage: DC4~30V (recommended 5~12V)Measuring current range: DC10A (display mode 0.000A~10.00A)Voltage measurement range: DC 100V (display mode 0.000V~10.00V~100.0V) DC 200V (display mode 0.00V~10.00V~100.0V)Refresh time: 300msDisplay mode: 0.28 inch 4-digit LEDProduct size: 60.00×28.60×22.00mmHole size: 57.5×26.0mmProduct weight: 25gLead definition:Thin red line: positive-pole of instrument power supplyThin black wire: the negative electrode of the power supply of the instrument is also a common ground wireThin yellow wire: measuring voltage positiveThick red line: the positive-pole of the current test, in series with the negative-pole of the loadThick black wire: the negative-pole of the current test, connected to the negative-pole of the load power supplyPackage included:1 * Voltmeter Ammeter2 * Leads

• ✿The minimum mA and mV levels can be displayed (200V range cannot display mV levels)
• ✿Lens silk screen, Chinese and English, international common unit symbols, clear at a glance,
• ✿The on-board simulator can be automatically reset to zero (30153 series current cannot be automatically reset to zero, occasionally the customer needs to manually reset to zero if it does not return to zero)
• ✿Measuring current range: DC10A (display mode 0.000A~10.00A)<br/>Voltage measurement range: DC 100V (display mode 0.000V~10.00V~100.0V)<br/> DC 200V (display mode 0.00V~10.00V~100.0V)
• ✿Working voltage: DC4~30V (recommended 5~12V)
